The
area around the Lower Odum Scout Trail consists
of a folded quartzite formation, with bedding and
cross-bedding apparent in some areas. The area

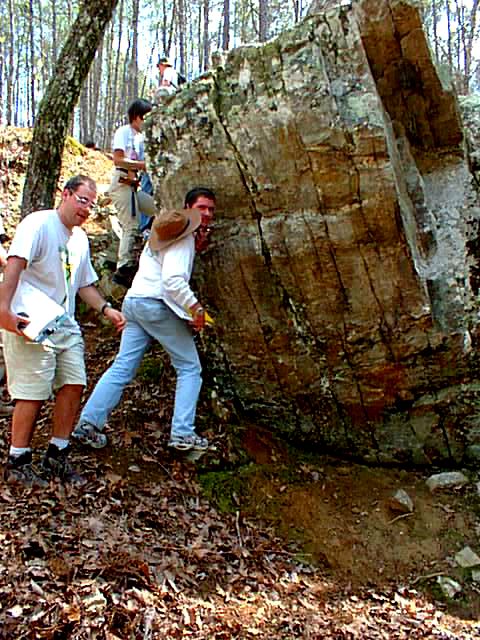

mapped consists of a large antiformal anticline. Larry
(right) and a USF student explore the outcrop at
the first stop on the trail. Tension gashes and
joints are present in the photograph. The tension
gashes oriented almost at right angles to the
bedding plane indicate that this area is near the
region of maximum bending along the fold. The
joints run perpendicular to bedding planes,
oriented N15W/94NE. Younging direction indicated
by cross-bedding demonstrates the beds are not
overturned.
Strikes and
dips were taken by students at many points along
the trail. The regional fold axis can then be
determined by plotting the strikes and dips on a
pi-diagram.
|

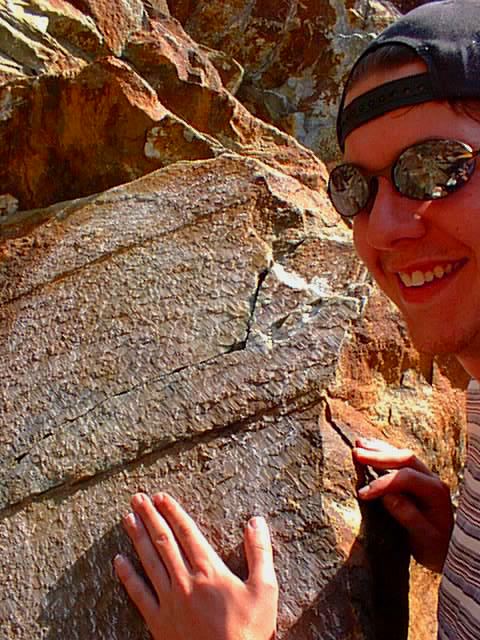

Curt shows the camera chattermarks
on a rock face near the Odum Scout Trail.
|
