<-- Back Radio and digitizing Seismograph Sercel Eagle Opseis 388 |

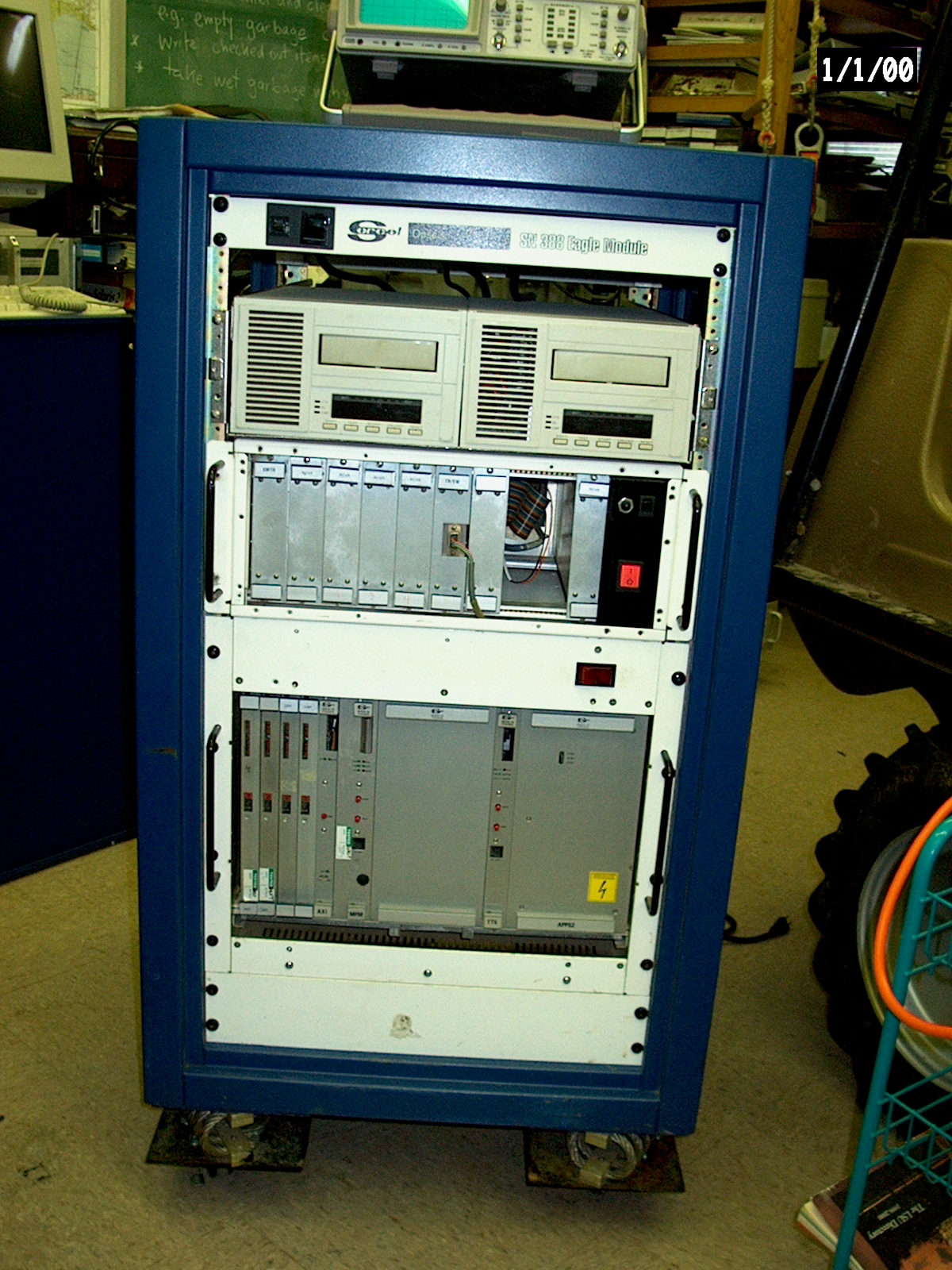

Each unit conisists of two tape drives (top), a radio Unit (middle) and several A/D boards (bottom) for up to 2400 channels. The smallest sampling interval is 1 ms. |

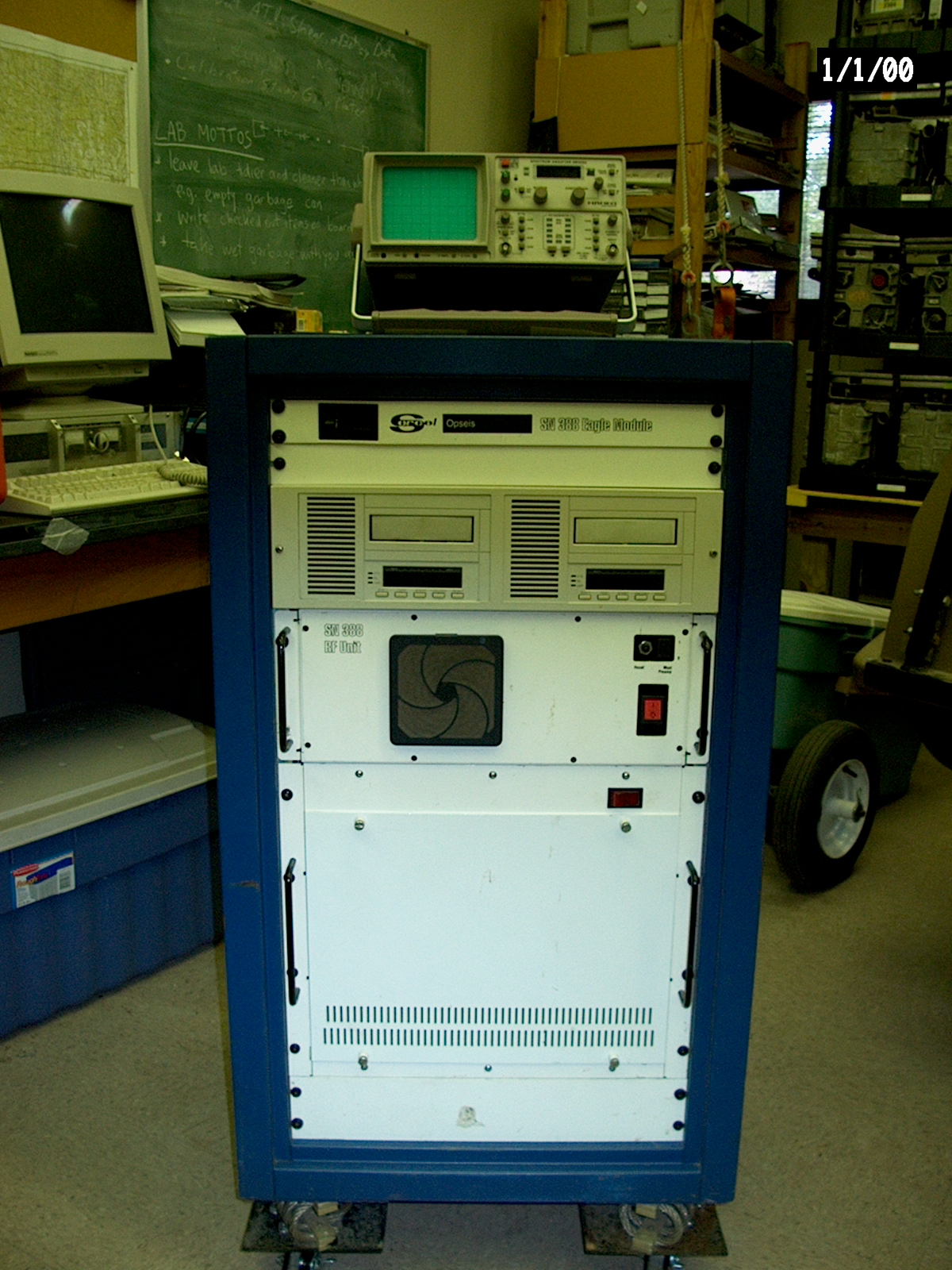

The same unit with a spectrum analyzer
Spectrum Analyzer monitor radio transmission between field unit and the recorder above |

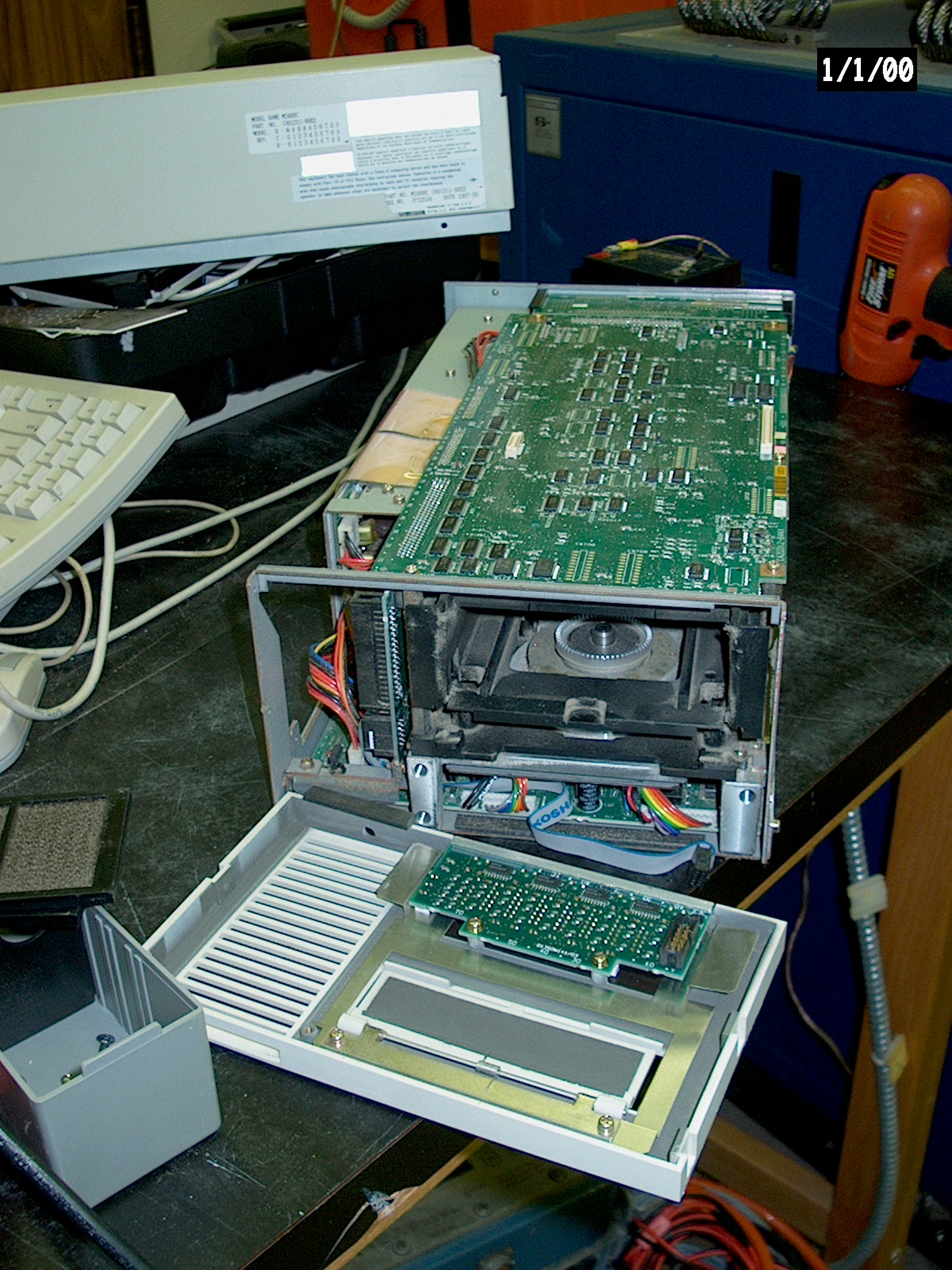

Tape Drive
This drive is opened for cleaning |
