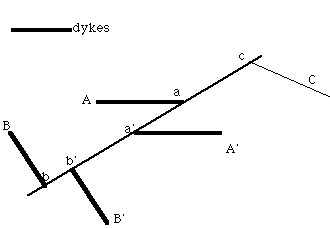

1) (Refer to the following figure) A fault surface (N50E/60SE) cuts two dykes:

dyke A: (W/40N)

dyke B: (S40E/20SW)

Along a horizontal reference surface the following is known:

bb': 250 m

aa': 460 m

b'a': 450 m

ac: 500 m

A very thin bed (C) (S60E/70SW) crosses the fault at c. Determine and draw the continuation of this bed on the northern side of the fault trace.

Calculate graphically the net slip and all the components (angles and distances) of the displacement vector. What type of fault is this?
