Bandpass Filter

1) Copy flow as you did for the previous lab.

2) Using MB2, open the parameters box for parameter test. Under parameter values, enter the limits of your filter. Multiple filters may be created using a vertical bar as a separator.

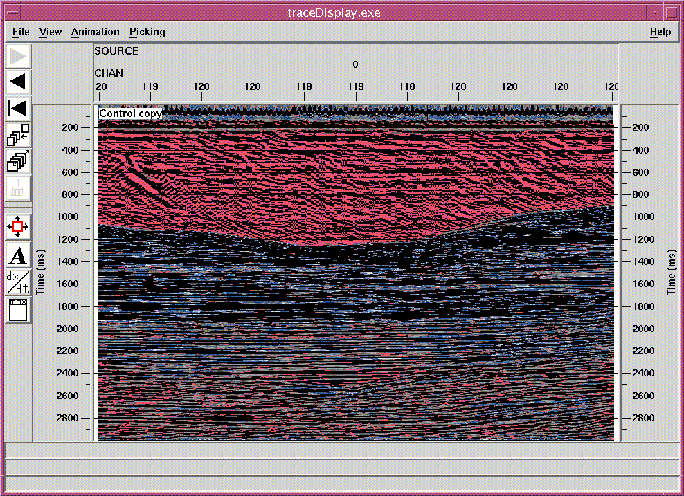

3) Once the parameters are defined, click Execute (MB2). The screen display of filtered output will appear:

To view the filtered output of each filter, click on the arrow icons (first two icons in the column on the left-hand side of the window). To view the filtered output of each filter in succession, click the save current screen icon (fourth icon in column) on each filtered output screen you wish to save. Once each screen is saved, click the replay icon (fifth icon). Now you can use the animation tool to manual click through all the saved screens, or automatically view them in succession.
